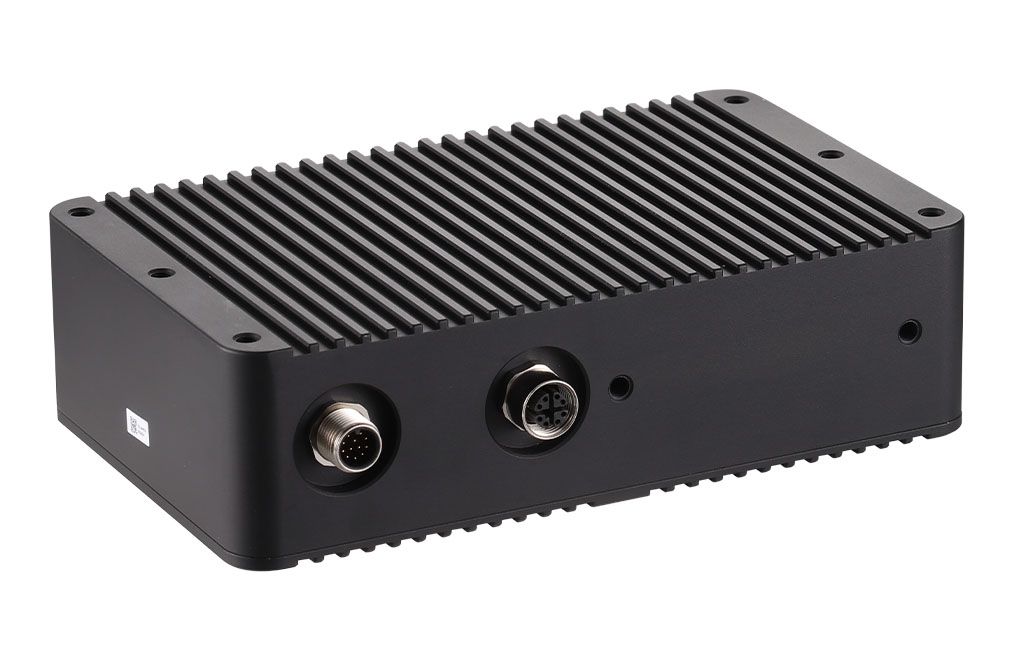

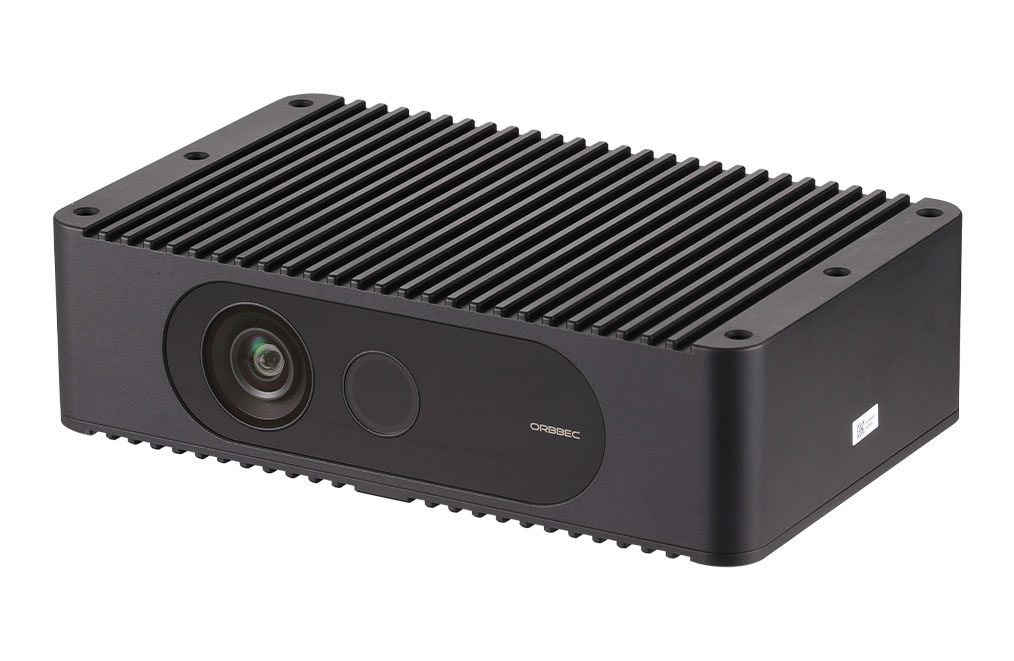

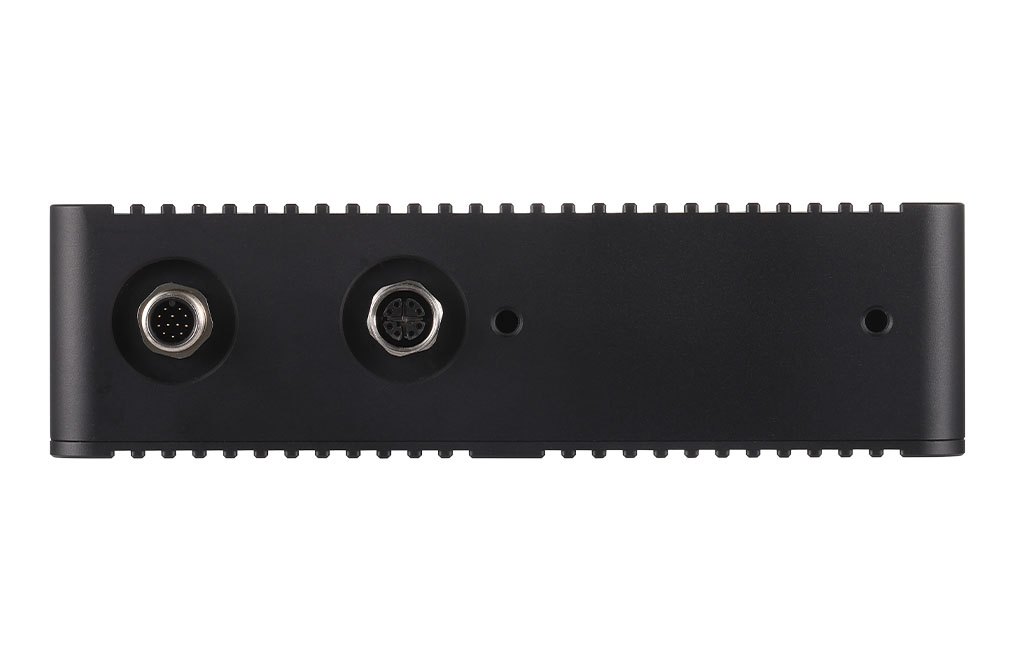

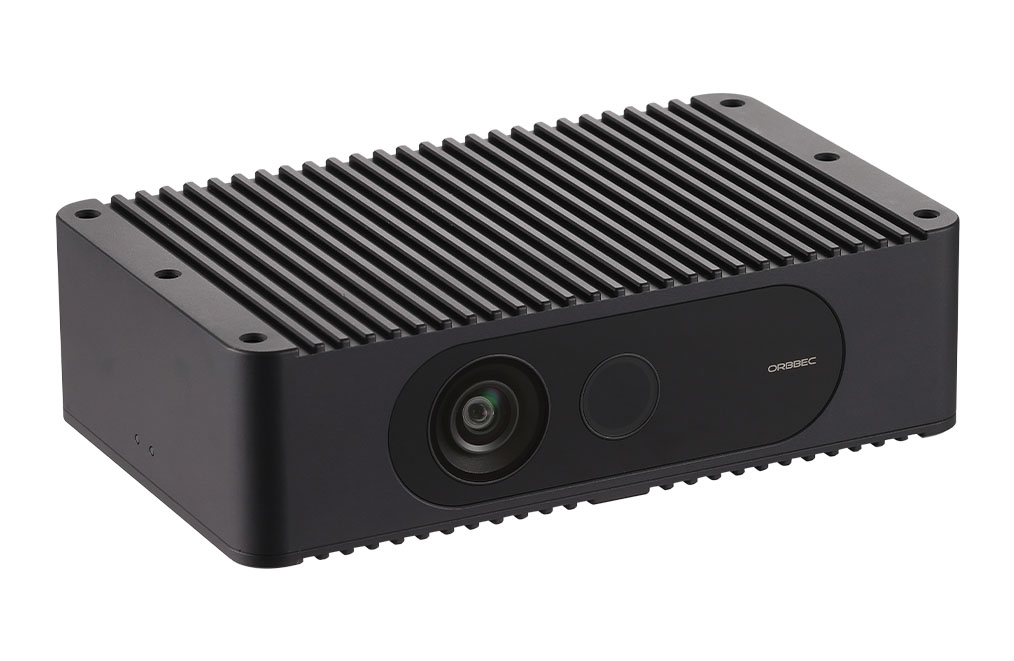

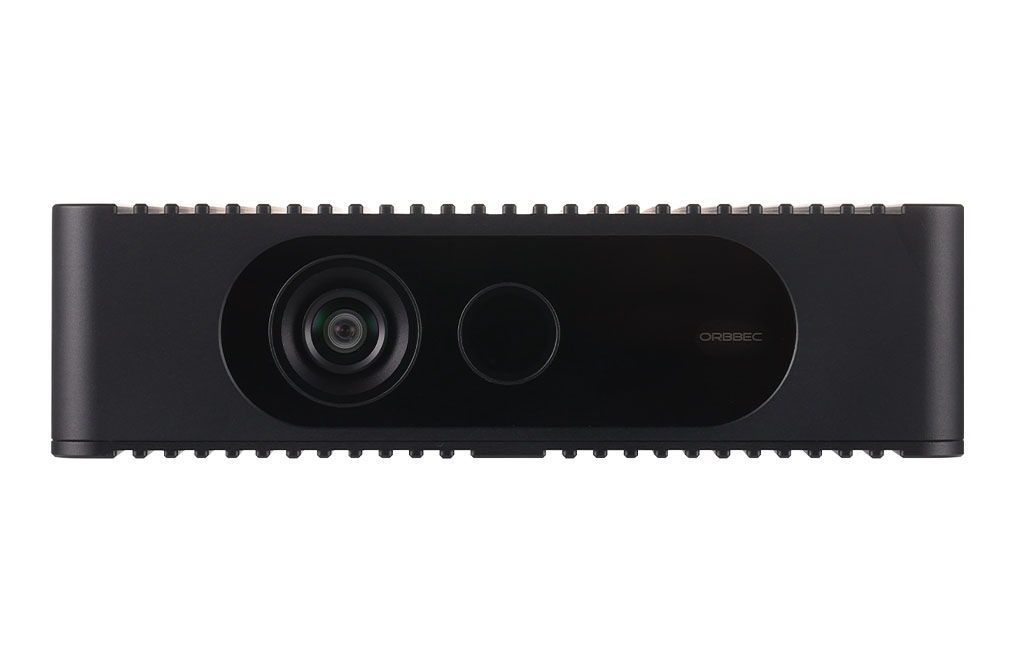

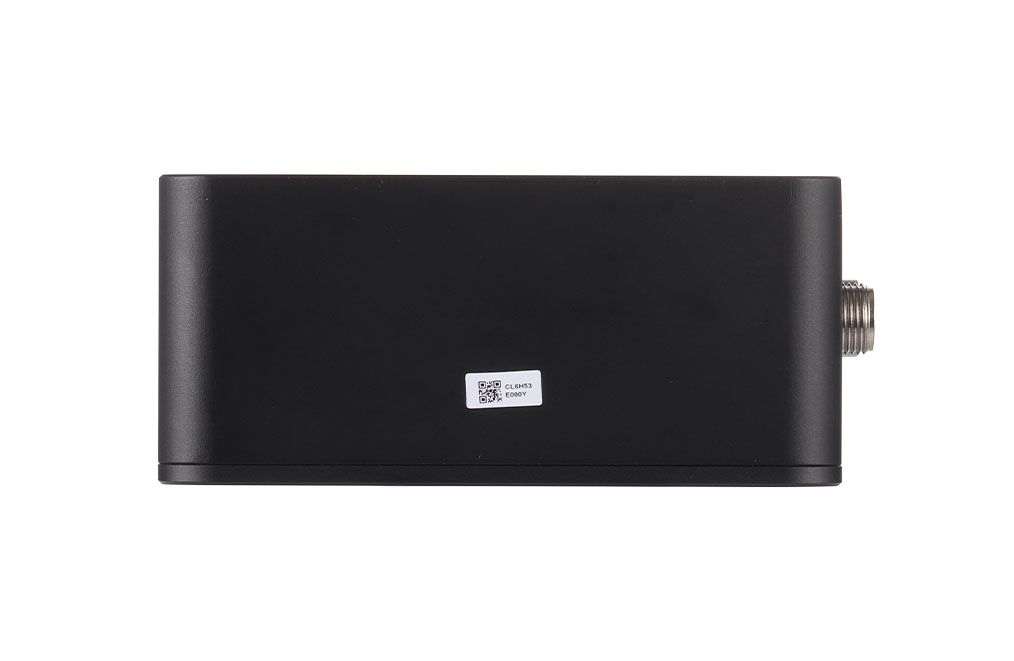

TOF Camera Femto Mega I

Danh mục:

Orbbec

Từ khóa:

3d vina , Camera Femto Mega I , Femto Mega I , hiệu chuẩn thiết bị , máy đo 2d , máy đo 3d , máy đo cmm , sửa máy đo , TOF Camera , TOF Camera Femto Mega I

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0969 752 366 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

TOF Camera Femto Mega I Specification

Camera Specification	Physical Parameters
Depth technology: Time of flight	Data Connection: ethernet (M12 X-coding connector 8 pins)
Wavelength: 850nm	Power Input: PoE+/DC 12∼24V
Depth Range: *0.25-3.86m (depending on depth mode)	Trigger: Supported
Depth Resolution/FPS: Snapshot Mode: Up to 1024X1024@10fps (WFOV), 640X576@10fps (NFOV)Stream Mode: Up to 1024X1024@15fps (WFOV), 640X576@30fps (NFOV)	Power Consumption: Average <11W
Depth FOV: H 120º V 120º (WFOV), H 75º V 65º (NFOV)	Operating Environment: 0ºC-45ºC; Indoor/Semi-outdoor; 8-90%RH (non-condensing)
RBG Resolution/FPS: Snapshot Modo: up to 3840X2160@3fps, 1920X1080@10FPSStream; Mode: Up to 3840X2160225fps, 1920X1080@30FPS	SDK Support: Orbbec Industry SDK
RGB FOV: H 80º V 51º	Data Output: Point Cloud, Depth Map, IR&RGB
Processing: NVIDIA Jetson Nano	*Dimensions (WHD):* 180mm×50mm×110mm
IMU: Supported	Weight: 1080g
Depth typical systematic error (accuracy) <11mm+0.1% distance; Depth random error std. dev.(precision)* ≤ 17 mm	Installation: 8×M5

TOF Camera Femto Mega I Applications

Depalleztization: The camera can capture spatial information about objects on a pallet. By indentifying the exact location, orientation, and shape of each item, Femto Mega I enables precise robotic picking

Loading and Unloading: The camera Provides accurate distance measurements allowing for precise robotic handling. This depth information minimizes cp;;isions and errors, optimingzing effciency and reducing damage to goods in logistics and manufacturing environments

Large object Dimensioning The camera enables automated dimensioning of large objects on a moving production line. It enables precise volume estimation, better cost calculation, and the possibility to sort out oversized objects
